    PROPERTIES

    The Ergonomic Hive Parts are wide range of common standardized equipment for

    modernization of classic wooden beehives. All parts are compatible with ErgoSeries, Wooden Series and fits all 10 frame equipment.

    Bottom Boards

    Multifunctional

    Division and Uniting Booards

    Hive ID older

    Brood Frames

    Super Frames

    Drone Frame

    Queen Excluder

    Hive Top Cover

    Round Bee Entrance

    Top Feeders

    Propolis Trap

    Comb Honey Frames

    PE-HD

    FOOD GRADE

    ANTI STATIK

    ANTI BACTERIAL

    ApiMaye

    Hive Top Covers

    The Ultimate Hive Top Cover is a self-ventilating, insulated, telescoping cover. No assembly or painting required.

    The impact proof thermoplastic polymer construction will not rot, wrap or absorb moisture.

    They are resistant of outside and external aggression and of all acids and chemical products. Double walled structure and insulation infills helps keep the colony warm in the winter and cool in the summer. During heavy rains sound does not propagate so the colony remains undisturbed. Draugt free ventilation system improves airflow and eliminates moisture in the hive. Fits all 10 frame equipment.

    Hive Cover Models

    ERGO TOP COVER



    Compatible with all 10 frame hive types.

    Ergo Top Cover (with isolation)

    20101

    Louvre

    Filter

    Latch

    Holder

    NUC TOP COVER



    Compatible with 6-7 frame hive types.



    20103

    Latch

    Holder

    Nuc Top Cover

    (with isolation)

    Louvre Filter

    ECO TOP COVER



    Compatible with all 10 frame hive types.

    Eco Top Cover Body

    OPTIONAL

    Latch

    Holder

    OPTIONAL

    Isolation

    Board

    Louvre Filters

    OPTIONAL

    Sliding Vent

    Adjusters

    Eco Top Cover without accessories

    Eco Top Cover with Isolation Board

    Eco Top Cover without Isolation Board

    Ergonomic

    Bottom Boards With Integrated Pollen Trap

    Multifunctional Hive Entrance

    Anti-slip Pads

    Sliding Pollen Trap

    IPM Bottom Body

    Varroa Drawer

    Pollen Slider Blind Plug

    Pollen Tray

    Ergonomic Bottom Boards

    ADVANTAGES

    The varroa mite and the concept of  “integrated pest management” (IPM) the “screened” bottom board has become more important.

    Research has found that a certain number of mites fall to the bottom of the hive as a result of the normal hustle and bustle of the bees above. On solid boards, the mites apparently hitch a ride on passing bees and return to the nest. With a screened bottom, the mites fall through and away from the comings and goings of the passing bees; the mites perish. Using a screened bottom board is a good way to control a certain number of mites in a non-chemical way.

    The Ergonomic Bottom Board, the complete plastic screen structure and bottom drawer ensures the bees always have controlled fresh air and allows debris and mites to fall out of the hive which you can then examine to learn about the health of your bees.

    Ergonomic Bottom Boards Types, Sizes And Options

    Ergonomic

    Bottom Board Types

    Type A (20000)

    Type A-1 (20003)



    Type B (20021)

    Type B-1 (20023)

    Type C (20034)

    Type D (20047)

    Type E (20059)

    Type F (20077)

    Type G (20085)

    Type R (20093)

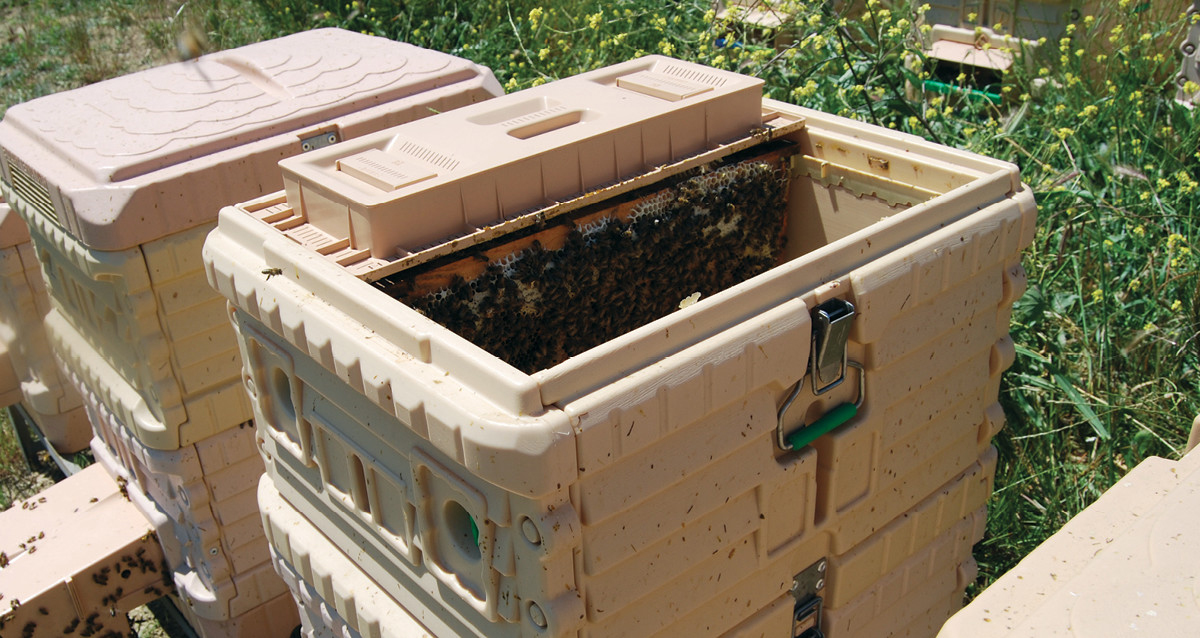

    Inner Cover Type Top Feeder

    Built-in feeders of the inner cover enable solid and liquid feeding without

    having to open the hive, while both the hive temperature balance and the

    bees remain undisturbed.V

    Liquid Feeding

    The cover reading “Syrup” should be the outermost cover when feeding syrup.
    Solid Feeding

    The cover reading “Cake” should be the outermost cover when feeding cake.

    Advantages of Top Feeders

    > The hive-top feeder has several distinct advantages over other types of feeders:

    > You don’t have to fill the feeder more than once every week or two.

    > You can fill the feeder without risk of being stung (the bees are on the opposite side of the screen).

    > Because you don’t have to completely open the hive to refill it, you don’t disturb the colony (every time you smoke and open a hive you set the bees’ progress back a few days).

    > Because the syrup is not exposed to the sun, you can add medication without concern that light will diminish its effectiveness.

    Feeder Cover

    Built in Safety Locks

    Alternating Covers

    Feeder Body

    Top Feeder Types

    Inner Cover Type Top Feeder

    (Full Size) (20201)

    Inner Cover Type Top Feeder

    (Half Size) (20202)

    Inner Cover Type Top Feeder

    (Nuc Size) (2021

    Feeder With Propolis Trap

    (20205)

    Feeder With Wooden Base

    (20207)

    Inner Cover Type Top Feeder

    (Queen Size) (20203)

    Box Feeder

    (20206)

    Turbo Feeder

    (20204)

    ApiMaye

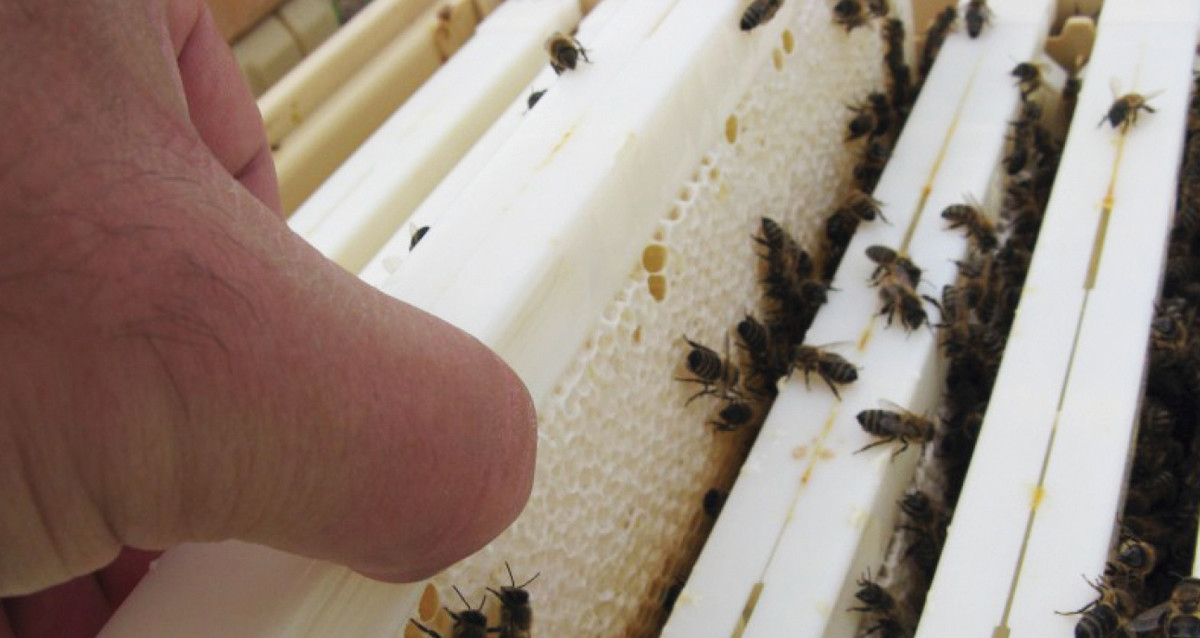

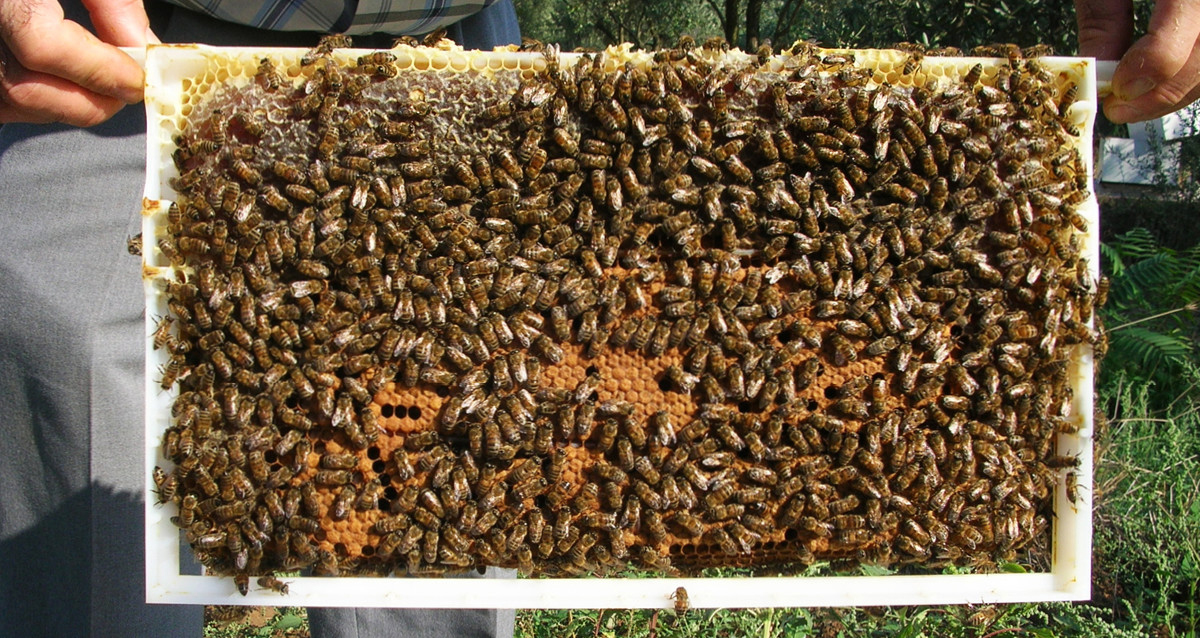

    HIVE FrameS

    The hive frames, the fundamental element where the colony performs all of its activities and production, were handled in parallel with the development of ApiMaye Thermo Hive type, resulting in a new frame design.

    Designed on the basis of studies intended to increase beekeeper productivity, the frame model incorporates hygienic and beekeeperfriendly features as a priority.

    Many characteristics of conventional frames cause the producer to unnecessarily spend a lot of time, where nailing the frame together, fastening and stretching the wires across the frame, embedding the wax into the frame and attaching it to the top bar result in high labour costs and loss of time. ApiMaye handy frames prevent such loss of time, making it possible to set up a much larger number of frames in a shorter time and allowing the beekeeper to work with a larger number of colonies. These handy frames are composed of male and female components that can be

    separated into two. This not only enables the foundation sheet to be conveniently inserted, but also offers, thanks to the wax holders, an alternative to wire stretching and wax embedding. Depending on preference, the fixing rods can be easily removed and the holes for wire stretching can be used instead. Handy Frames can be easily cleaned in 60° warm water and used multiple times. They are also suitable for use with uncapping machines and honey harvesting machines.

    ApiMaye

    Frame Types

    Handy Frame

    Queen Frame

    Comb Honey Frame

    Plastic Foundation Frame

    Plastic Foundation Sheet

    Drone Comb Frame

    ApiMaye

    Ergonomic Hive Components
